Discover M Rear Hub Bolts Replacement SOP

  • Updated

1. Purpose

Define the controlled process for replacing disc brake rotor bolts while maintaining rotor alignment, ensuring uniform clamping load, and preventing deformation, fastener failure, or installation-induced defects.



2. Tools & Materials

  • Tools
    • Driver or drill with T25 bit
    • T25 torque wrench (range: 5–10 Nm minimum)
  • Materials
    • M5 x 11mm rotor bolts with Loctite
    • Brake cleaner and lint-free cloth (optional)
  • Personal Protection Equipment (PPE)
    • Cut-resistant gloves
    • Safety glasses

3. Critical Control Point & Safety Controls

⚠️ Power off the Bike and Remove the Battery
Before beginning any service, ensure the system is powered down and the battery is removed.
  • Power off the bike and remove the battery,
  • Removing the battery helps to:
    • Reduce overall weight, minimizing stress on the stand and seatpost
    • Improve handling, making the bike easier and safer to lift onto the stand
    • Lower the risk of damage or injury if the bike tips or falls
    • Prevent accidental activation of the system or motor
    • Avoid electrical hazards, including unintended contact with live components

⚠️ Rotor Retention Requirement
To keep everything aligned and secure, make sure the rotor stays properly fastened to the hub during service.
  • Keep at least one bolt installed until all replacement bolts are fully in place.
  • Not maintaining proper retention can lead to:
    • Rotor misalignment
    • Extra time spent on repositioning and rework
    • Potential component damage or unsafe assembly
This small step helps the job run smoothly.

⚠️ Sharp Edge Hazard (Rotor) Brake rotor edges may be sharp and can cause lacerations.
  • Always wear cut-resistant gloves during handling
  • Do not run fingers along the rotor edge
  • Handle the rotor by the inner carrier/spider only
  • Maintain controlled hand placement, especially when removing the final bolt


4. Procedure

4.1 Preparation

  1. Secure the bicycle in a stable work position.
  2. Inspect rotor and hub mounting interface for:
    1. Dirt, grease, or debris
    2. Surface damage or burrs
  3. Clean all contact surfaces using approved cleaner.


4.2 Controlled Bolt Removal

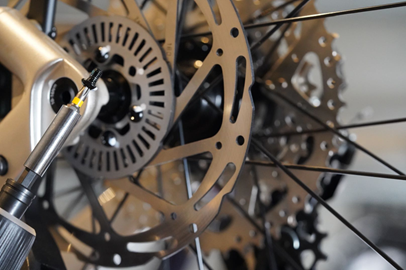

  1. Remove five (5) of the six (6) original bolts.
  2. Retain one (1) original bolt installed to maintain:
    1. Rotor alignment
    2. Positional stability


4.3 Installation of New Bolts

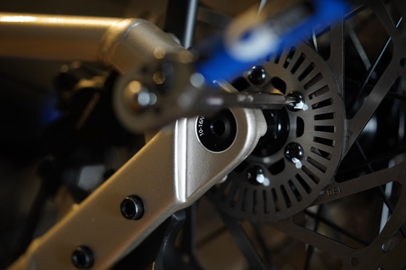

  1. Install five (5) new bolts into the open holes.
  2. Tighten each bolt to a finger-tight condition only (no torque applied).


4.4 Final Bolt Replacement

  1. Stabilize the rotor by the inner carrier (spider), not the outer edge.
  2. Remove the last remaining original bolt.
  3. Install the final new bolt with threadlocker applied.
  4. Tighten to a finger-tight condition.

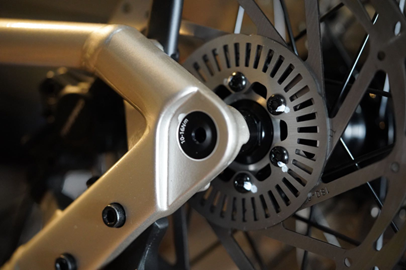

4.5 Pre-Torque Verification

  • Confirm rotor is:
    • Fully seated against the hub
    • Flush with no visible gaps
    • Properly centered
  • Verify all six (6) bolts are installed and evenly engaged

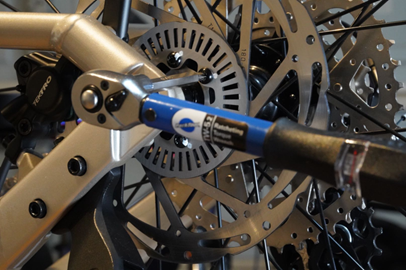

4.6 Torque Application

  1. Tighten bolts using a crisscross (star) pattern to ensure even load distribution.
  2. Apply torque in three progressive stages:
    1. Stage 1: Light seating torque
    2. Stage 2: Intermediate torque
    3. Stage 3: Final torque
  3. Final torque specification: 8-10 Nm


5.Quality Assurance

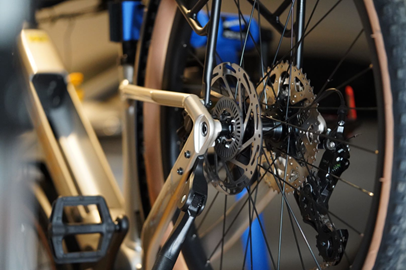

  • Rotate wheel to verify:
    • No lateral rotor runout (no wobble)
  • Confirm:
    • All bolts meet the torque specification
    • Rotor remains flush and stable
  • Perform a functional brake test prior to release
