How to Change Display Settings

Please select and follow the Display settings steps that correspond to your specific bike model.

Get into the Menu

• Discover 1/Nomad 1/Discover 1 Plus/Nomad 1 Plus/F1/F1 Lite/T1 ST Plus
  • In a static and fault-free state, long press [➕] and [➖] buttons for 1s synchronously to enter Menu.
• Go1/ Packer 1
  • In a static and fault-free state, long press [i] button for 1s synchronously to enter Menu.
• Discover 2/Summit 1/Fold Plus/Breeze 1/Nomad 2
  • In a static and fault-free state, long press the button for 2 seconds to enter the menu.

Note: If the interface doesn’t operate for 60 seconds, the system will return Riding interface automatically.

How to Change the Units

• Discover 1/Nomad 1/Discover 1 Plus/Nomad 1 Plus/F1/F1 Lite/Go1/ Packer 1

  • After entering the menu, navigate to the unit switching setting by pressing the power button. Use the [➕] and [➖] buttons to switch units. After finishing, long press the power button to turn off and save.



• T1 ST Plus

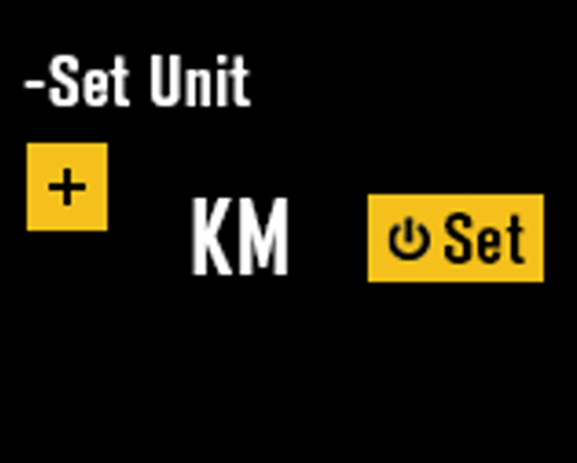

  • After entering the menu, navigate to the unit switching setting by pressing the [➕] and [➖] buttons. Single press the Power button to enter the settings. Use the [➕] and [➖] buttons to switch units. After finishing, long press the power button to turn off and save.



• Discover 2/Summit 1/Fold Plus/Breeze 1/Nomad 2/Nomad 2X/Triker

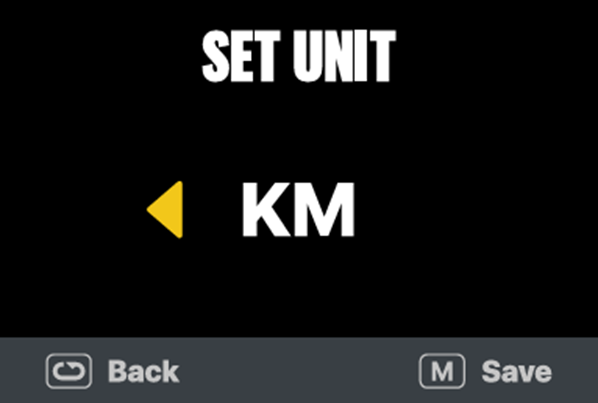

  • After entering the menu, navigate to the unit setting by pressing the [➕] and [➖] buttons. Single press the [M] button to enter the settings. Single press the [<] or [>] button to change the unit. The setting options are miles and kilometers. The default value is miles. Single press the button to save the setting, or press the button to exit without saving.



How to change the auto power off time

• Discover 1/Nomad 1/Discover 1 Plus/Nomad 1 Plus/F1/F1 Lite/Go1/ Packer 1

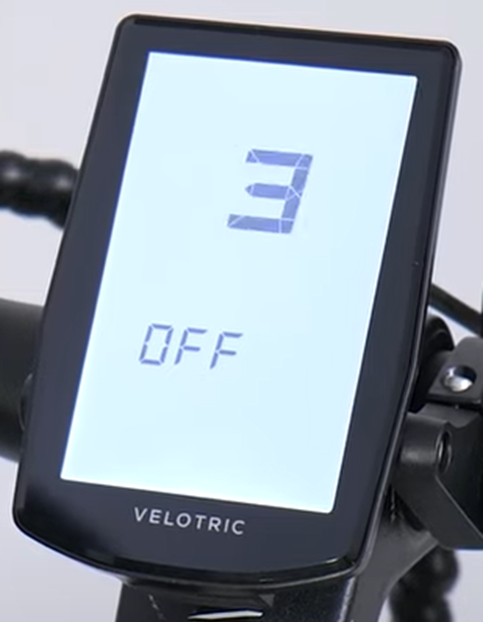

  • After entering the menu, navigate to the unit settings by pressing the power button. Use the [➕] or [➖] buttons to switch units. After finishing, long press the power button to turn off and save.



• T1 ST Plus

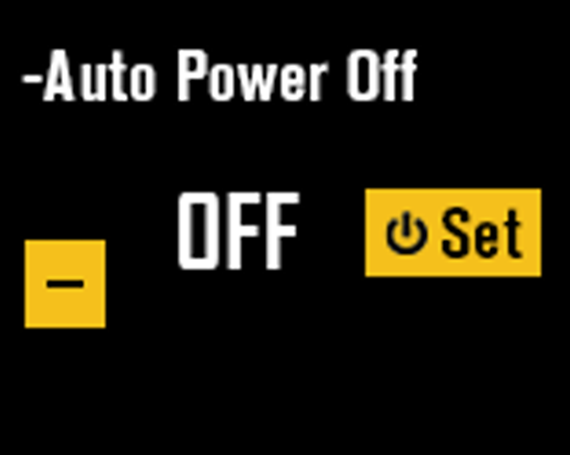

  • After entering the menu, navigate to the unit switching setting by pressing the [➕] and [➖] buttons. Single press the Power button to enter the settings. Use the [➕] and [➖] buttons to adjust the 'Auto Power Off' time. The setting options are 5, 10, 30, 60 minutes and OFF.  The default value is 5 minutes. Your eBike will automatically power off after sitting idle for a few minutes. The OFF means the eBike will never power off itself automatically. After finishing, single press the Power button to save the setting.



• Discover 2/Summit 1/Fold Plus/Breeze 1/Nomad 2/Nomad 2X/Triker

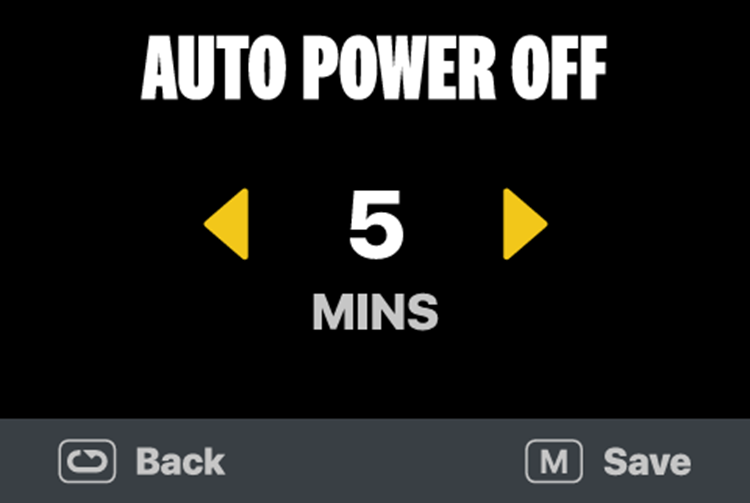

  • After entering the menu, navigate to the unit setting by pressing the [➕] and [➖] buttons. Single press the [M] button to enter the settings. Single press  [<] or [>] button to adjust the 'Auto Power Off' time. The setting options are 5, 10, 30, 60 minutes and OFF. The default value is 5 minutes. Your Ebike will automatically power off itself after sitting idle for a few minutes. The OFF means the Ebike will never power off itself automatically. Single press the power button to save the setting, or press the [↺] button to exit without saving.



How to Adjust the Display Brightness

• Discover 1/Nomad 1/Discover 1 Plus/Nomad 1 Plus/F1/F1 Lite/Go1/ Packer 1

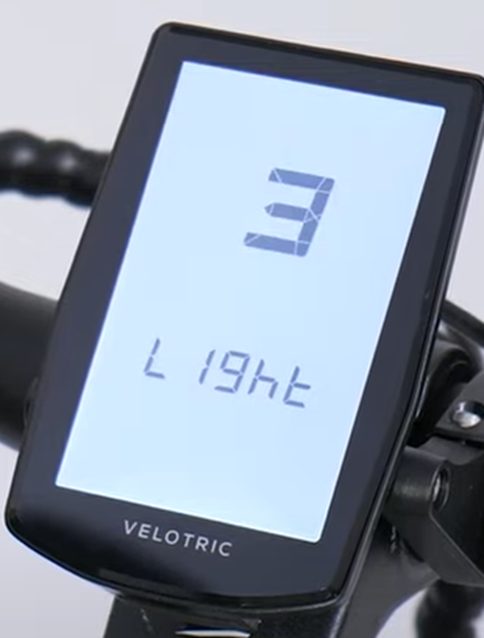

  • After entering the menu, navigate to the Brightness setting by pressing the power button. Use the [➕] and [➖] buttons to adjust screen brightness. After finishing, long press the power button to turn off and save.

• T1 ST Plus

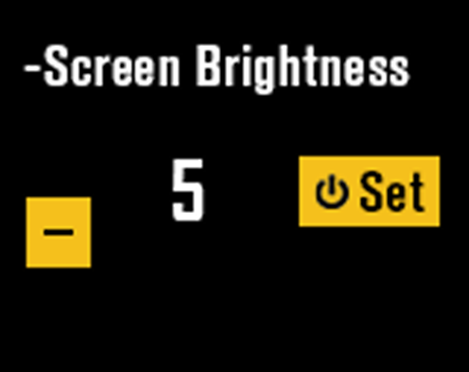

  • After entering the menu, navigate to the Brightness setting by pressing the [➕] and [➖] buttons. Single press the Power button to enter the settings. Use the [➕] and [➖] buttons to adjust screen brightness. The setting options are 1-5  and Auto. 1 is the darkest, 5 is the brightest.  "Auto" means the display will detect the brightness automatically. The default value is 5.  Single press the power button to save the setting, or press the [↺] button to exit without saving.



• Discover 2/Summit 1/Fold Plus/Breeze 1/Nomad 2/Nomad 2X/Triker

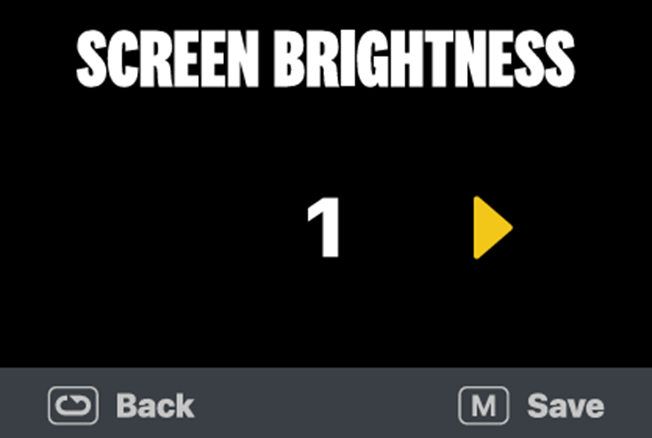

  • After entering the menu, navigate to the unit setting by pressing the [➕] and [➖] buttons. Single press the [M] button to enter the settings. Single press the [<] or [>] button to adjust screen brightness. The setting options are 1-5  and Auto. 1 is the darkest, 5 is the brightest.  "Auto" means the display will detect the  brightness automatically. The default value is Auto. Single press the power button to save the setting, or press the [↺] button to exit without saving.

Rev.  070325A
