Velotric Discover 2 Display Replacement Guide

Bike Model: Discover 2/Nomad 2/Nomad 2X/Breeze 1/Summit 1/Fold 1 Plus/Triker/T1/T1 ST Plus

When replacing the display,  please follow the steps below:

1. Under settings, select "Help" to navigate to the Help Menu. In the Help Menu, select "Part Replacement."

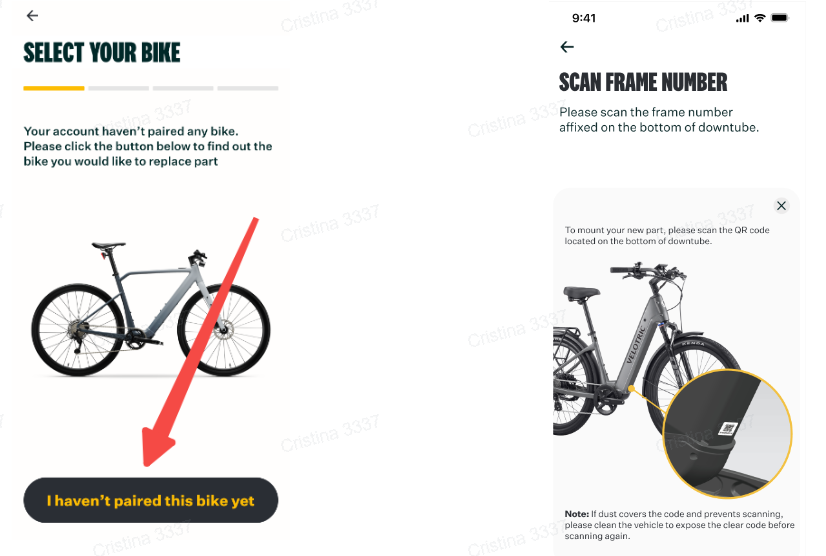

2. If the APP displays the following interface or there is no bike in the bike list that needs to be replaced, you need to pair your bike.  Click "I haven't paired this bike yet", and scan the QR code of the bike frame to complete the pairing of the bike.

If there is a bike in the list that needs to be paired, proceed directly to step three.

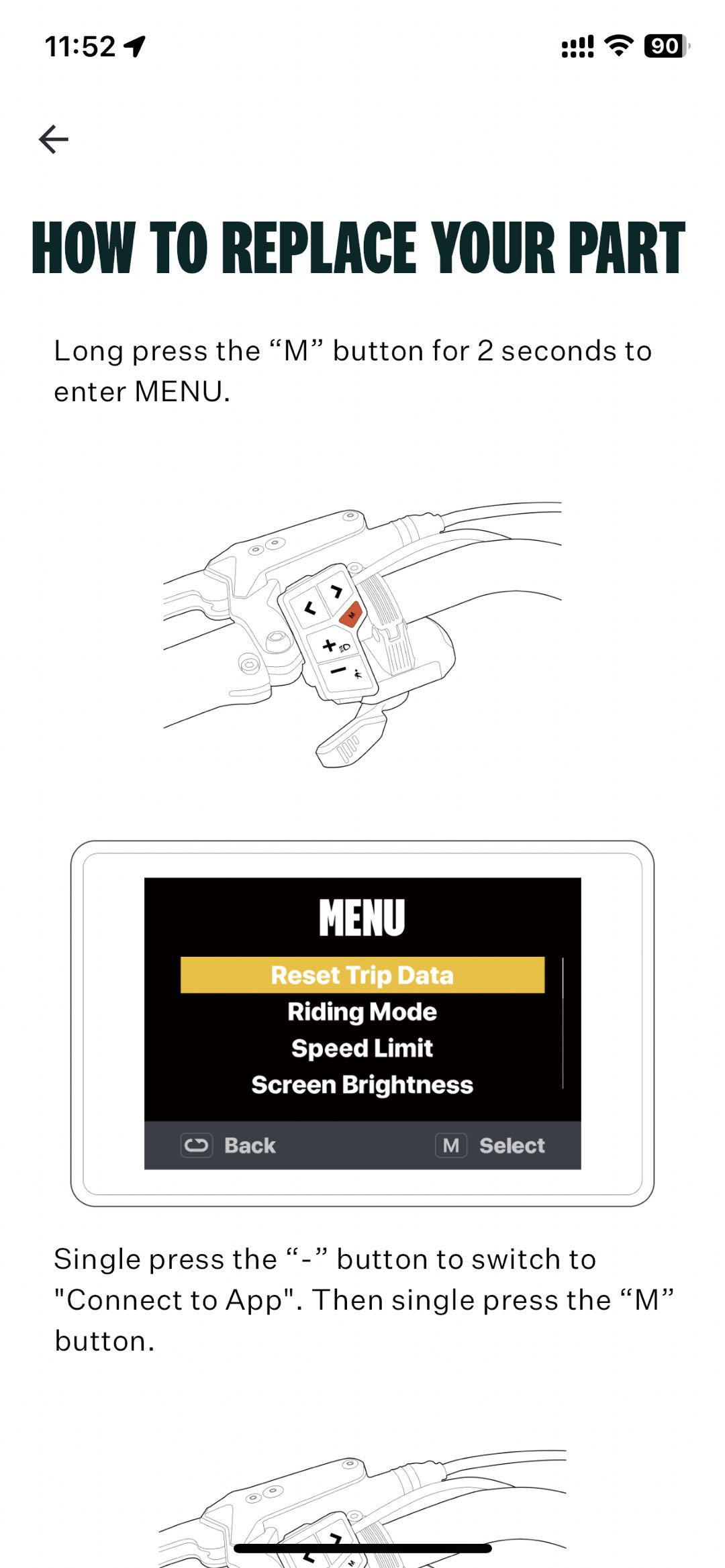

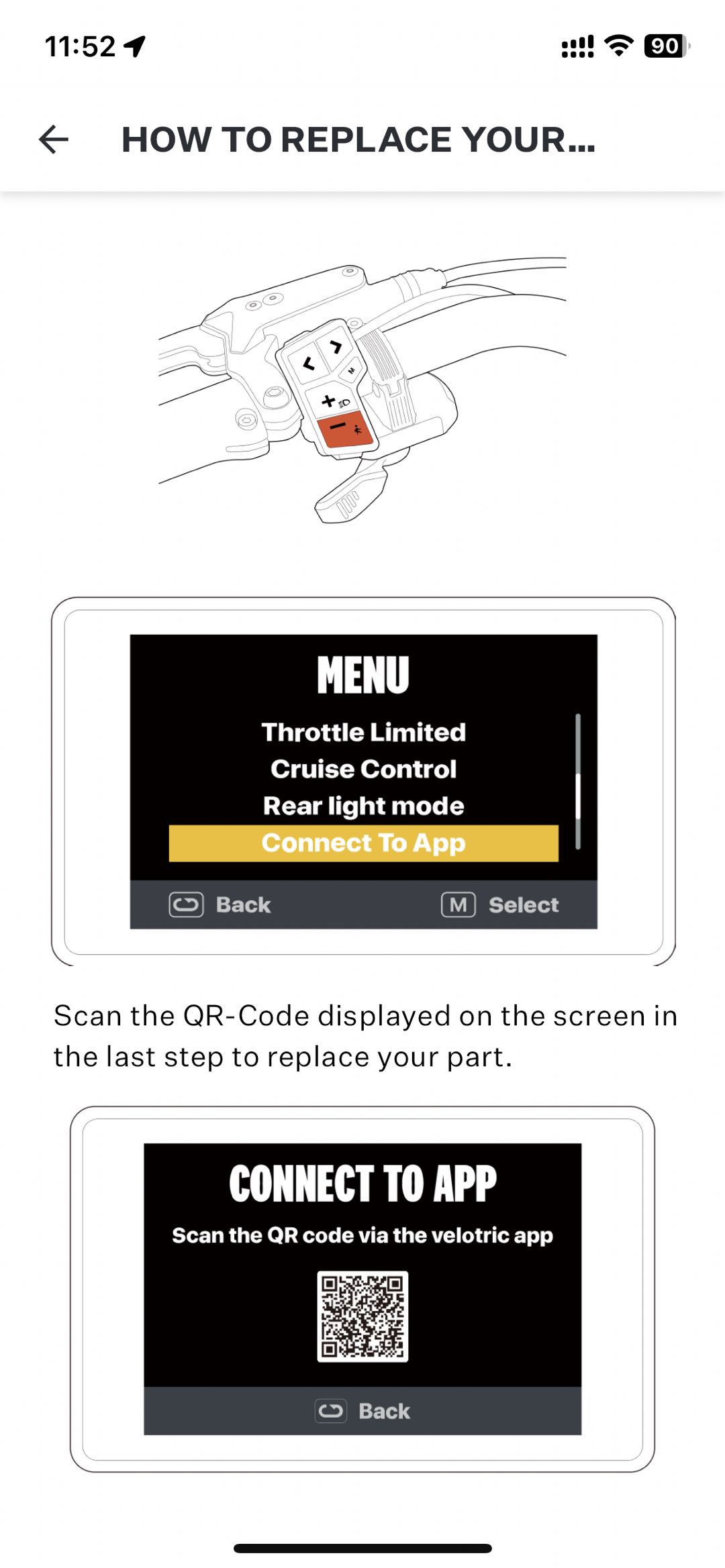

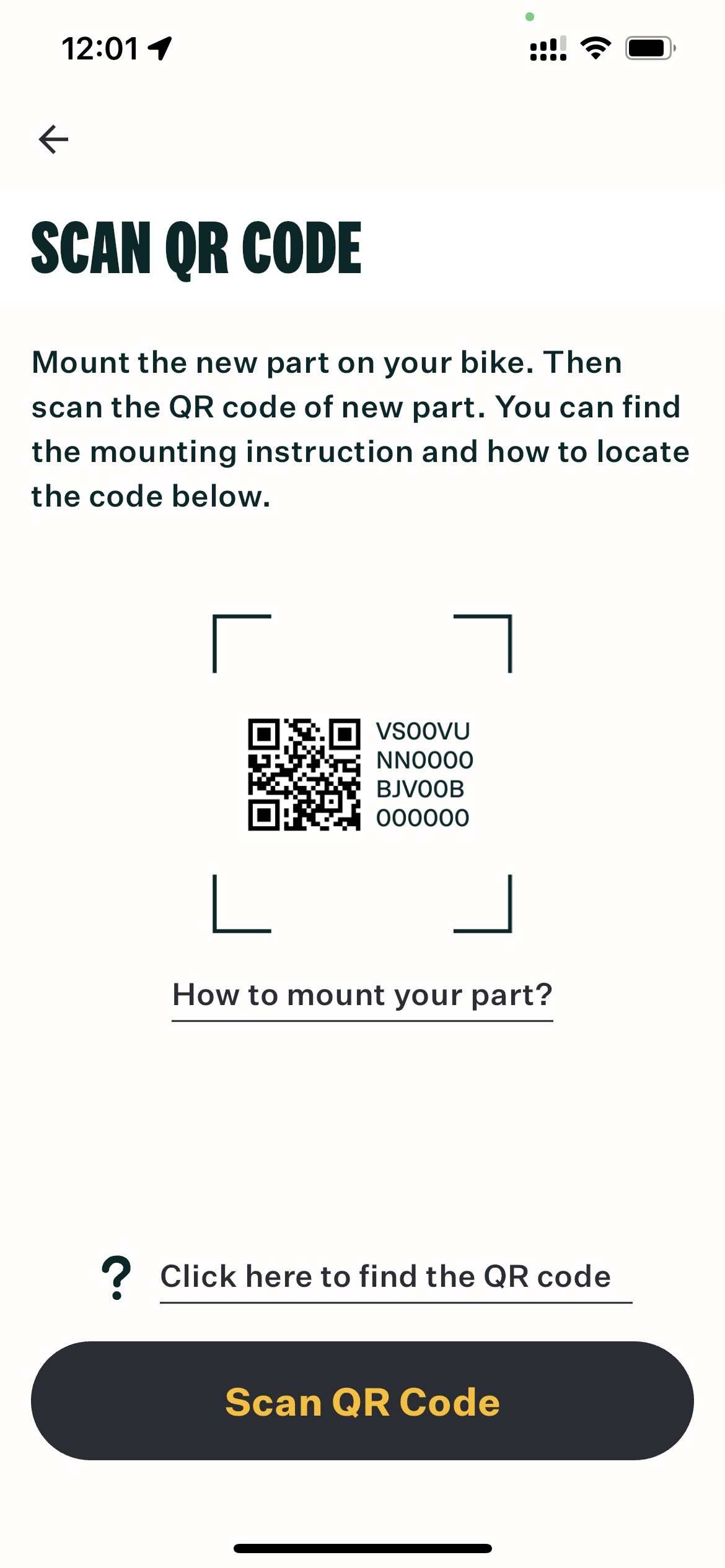

3. Select the bike that needs the display replaced, enter the interface for replacing new accessories (See Step 1), and scan the QR code inside the display panel that connects the app.

We have integrated the DISPLAY's serial number into the connecting app's QR code.

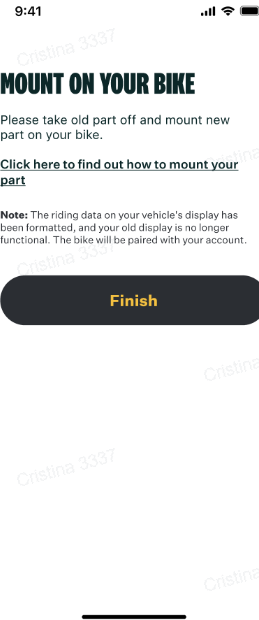

4. Click "Finish" in the APP to complete the replacement and finish installing the new display on the bike.

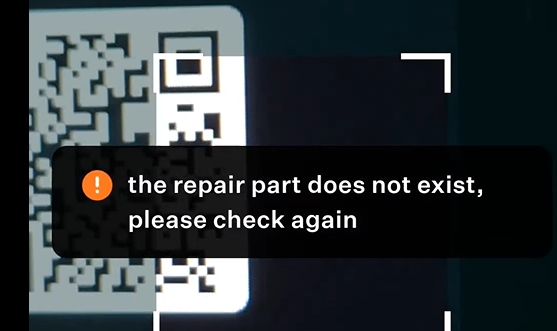

If you encounter the message "The repair part does not exist, please check again" while scanning the display QR code, kindly provide us with photos of both the display QR code and the frame QR code. Our backend team will address the issue promptly and notify you once it’s resolved, allowing you to pair the bike normally.

If you need any more help, we ask that all collected information provided in the link be submitted. The photos and video clips provided will give us a place to start.

https://app.sendhark.com/new/658353251252225c7163028b/?slug=record-upload&is_embed=true

Rev. 071025A
